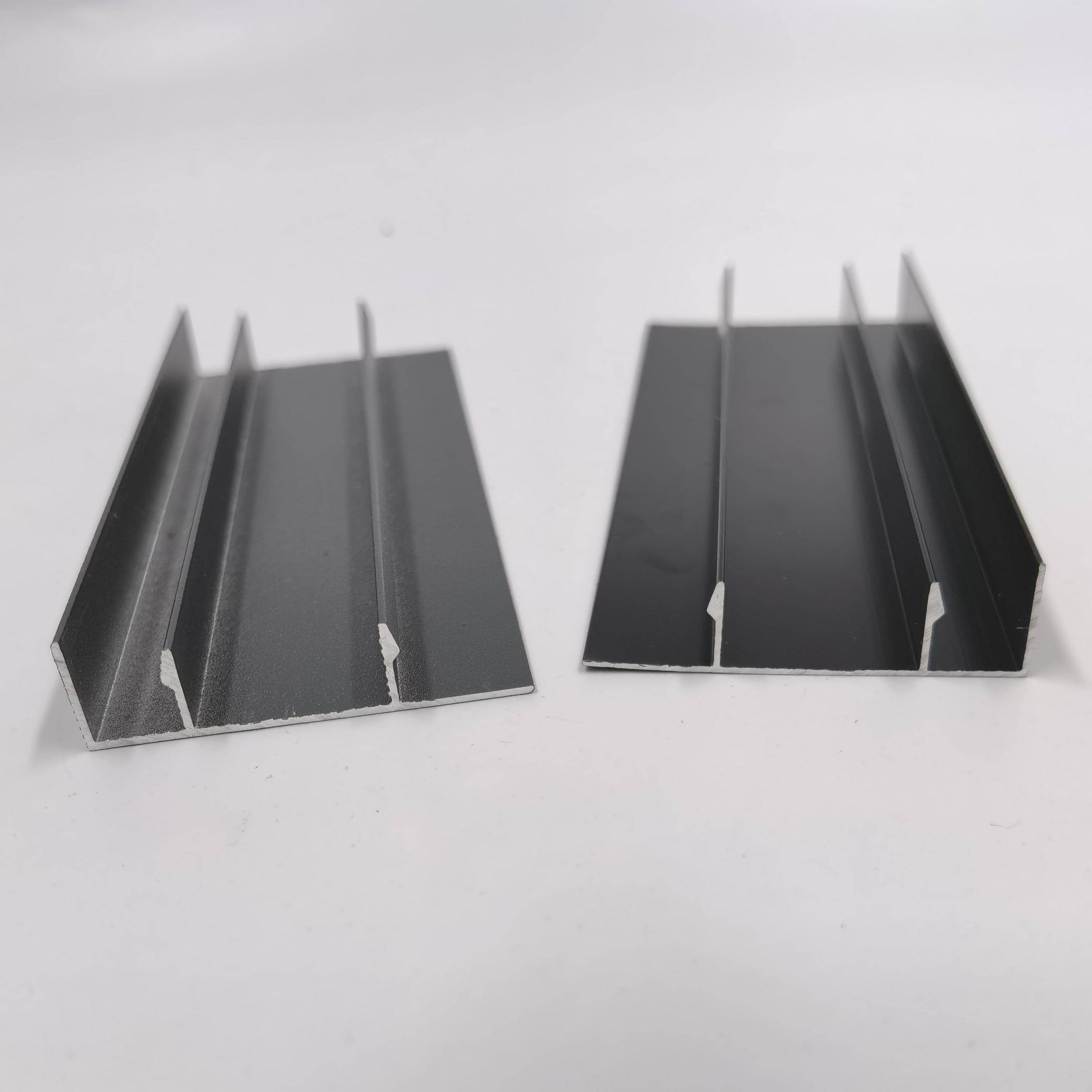

Construction 6063 Aluminium Channel Profiles 2.0mm Thickness

Aluminium Decorative Profiles Construction 6063 Aluminium Channel Profiles 0.8-2.0mm Thickness

Product Details:

Introduction of Anodized:

Building aluminum: building products made of aluminum and aluminum alloy materials. Pure aluminum has low strength and its application is limited. Aluminum alloys with different properties can be obtained by adding a small amount of alloying elements. After cold working and heat treatment, strengthening and hardening are greatly improved.

Aluminum oxide material: artificially form a layer of oxide film on the surface of aluminum material to form aluminum oxide material. With strong wear resistance, weather resistance and corrosion resistance, it can form a variety of colors on the surface of the substrate, and has strong hardness, which is suitable for the production of various construction and industrial materials.

Electrophoretic aluminum profile: the surface anti-corrosion performance is very high, which can effectively prevent acid, alkali and salt corrosion, and can effectively prevent the mortar corrosion of building. Even if it is used in harsh and harsh environment for decoration, it can also ensure the service life of more than 50 years without corrosion, aging, fading and falling off.

Rare earth foam aluminum: a new engineering material with many excellent physical properties, it has been widely applied in many fields, such as noise elimination, shock absorption, separation engineering, catalytic carrier, shielding protection, energy absorbing and buffering. Among them, the aluminum foam made of re aluminum alloy is the future excellent materials for automobiles, ships and other means of transportation.

Advantages of Aluminum Windows and Doors:

1. Lightweight and high strength
The aluminum alloy material is the thin wall composite section, easy to use, less weight, and the section has a higher flexural strength, the doors and Windows using aluminium has small deformation, durable.

2. Good airtight performance
The sealing property is the important performance index of the door and window, compared to common wood door& window and steel door& window, the aluminium door&windowhas better performance of air tightness, water tightness and acoustic insulation.

3.Strong corrosion resistance, easy to use and maintenance
Aluminum doors & Windows do not rust, do not fade, and the surface does not need to be painted, and maintenance costs are low.

4: High strength, Good rigidity, Strong and Durable

5. High value
In building decoration engineering, especially for the high-rise buildings and high-grade decoration engineering, if from adornment effect and air conditioning operation and annual maintenance integrated balance, the use value of the aluminum doors and windows is better than other kinds.

6. Not faded, easy to maintain
The aluminum doors and Windows do not need to be painted, and the surface does not need to be repaired.

7. Open and close light and flexible, noiseless

8. Attractive appearance, a variety of colours available
The surface treatment technology of aluminum profile can satisfy different people with different aesthetic needs.

Anodized Processing:

Processing:
① The contact surface of the suspender shall be polished clean before the profile is loaded, and the material shall be loaded according to the standard number. The calculation formula is as follows: the number of feeding pieces = standard current, standard current density × single profile area
② The principle for consideration of the number of branches on shelves:
a. The utilization rate of silicon machine capacity is not more than 95%;
b. The current density is 1.0-1.2a/dm;
c. The necessary gap between the profile shape and the two profiles is reserved;
③ Calculation of oxidation time: oxidation time (T) = film thickness K · current density K is electrolysis constant, take 0.26-0.32, t unit is minute;
④ It must be put on the shelf according to the number of pieces specified in the table of profile area and number of pieces in the upper row;
⑤ In order to facilitate the drainage and exhaust, the upper bundling should be inclined, with an inclination of 5 degrees;
⑥ Both ends can be 10-20 mm beyond the conducting rod, and the maximum should not be more than 50 mm.
3, Low temperature polishing process
① The concentration of low-temperature polishing agent in the low-temperature polishing tank should be controlled as 25-30g / L of total acid, and the minimum concentration should be ≥ 15 g / L;
② The temperature of polishing bath should not be lower than 20 ℃ and the polishing time should be 90-200s;
③ The rack is tilted. After dripping the residual liquid, it is quickly put into the clean water tank for rinsing. After two times of water washing, it is quickly put into the oxidation tank for oxidation. The residence time in the tank should not be more than 3 minutes;
④ The low-temperature polishing material should not be treated in other ways before polishing, and other bath liquid should not be brought into the polishing bath.
4, Oil removal process;
① The reaction was carried out in acid solution at room temperature for 2-4 minutes, and the concentration of H2SO4 was 140-160 g / L;
② After the rack is tilted to drip the residual liquid, put it into the clean water tank for 1-2 minutes.
5, Frosting (acid etching) process
① After oil removal, clean in clean water tank and then enter acid etching tank;
② Process parameters: nh4hf4 concentration 30-35 g / L, temperature 35-40 ℃, pH 2.8-3.2, acid etching time 3-5 minutes;
③ After the completion of acid etching, it will be washed twice before entering the alkali etching tank.
6, Alkali washing process
① Process parameters: free NaOH 30-45 g / L, total alkali 50-60 g / L, alkali etchant 5-10 g / L, Al3 + 0-15 g / L, temperature 35-45 ℃, sand alkali etching time 30-60 s;
② The rack is tilted, and after dripping the solution, it is quickly put into the clean water tank for cleaning;
③ Check the surface quality after cleaning, when there is no corrosion, debris, condensation surface phenomenon, you can enter the light out process.
7, Light emitting technology
① Process parameters: H2SO4 concentration 160-220 g / L, HNO3 appropriate or 50 g / L-100 g / L, temperature room temperature, light time 2-4 minutes;
② After the rack is tilted, the residual liquid is quickly put into the clean water tank for 1-2 minutes, and then put into the second clean water tank for 1-2 minutes;
③ After twice cleaning, clamp the aluminum wire on the binding frame to ensure good contact during oxidation. Clamp the aluminum wires at one end of the binding frame with common materials, and clamp the aluminum wires at both ends of the binding frame with coloring materials and electrophoretic materials.

Please tell us the information below, and we will give the best suggestion to you !

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
